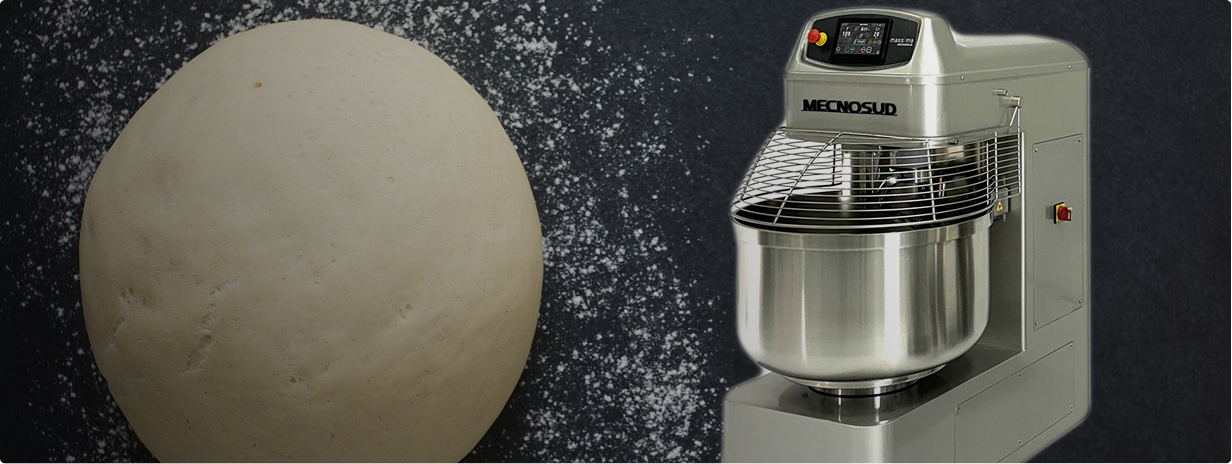

Automatic spiral mixer Massima M02 / M02 Plus

M02

2 Motors
Spiral Motor: 2 Speeds
Bowl Motor: 1 Speed
Bowl Reversal
Mechanical Timer

M02 PLUS

2 Motors | 2 Inverters
Independently Variable Speed for Spiral and Bowl
Bowl Reversal
Touch Screen with Work Programs
Bowl Light
Temperature Sensor

Technical Data

M02

2 Motors with Bowl Rotation Reversal

Model	Price €	Dough Capacity (kg)	Bowl Volume (L)	Spiral Speed 1/2^A (rpm)	Bowl Speed (rpm)	Spiral Motor (kW)	Bowl Motor (kW)	Voltage	Dimensions (A×B×C mm)	Weight (kg)
M60	–	60	100	100/200	20	1.5/3	0.55	400/50–60/3	1040×1200×620×730	370
M80	–	80	130	112/224	16	3.5/5.2	0.75	400/50–60/3	1190×1430×725×814	510
M120	–	120	180	125/250	16	4/6	1.1	400/50–60/3	1300×1500×830×900	620
M160	–	160	250	125/250	16	4/6	1.5	400/50–60/3	1400×1600×880×950	760
M200	–	200	320	125/250	16	5.5/7.5	2.2	400/50–60/3	1500×1720×900×1000	880
M250	–	250	400	125/250	16	7.5/10	3	400/50–60/3	1600×1800×950×1100	1020

OPTIONAL for M02 Series

“T” – Touch-Screen Timer with Programs + “LV” – Bowl Light + “ST” – Temperature Sensor

M02PLUS

2 Motors with 2 Inverters and Bowl Rotation Reversal

Model	Price €	Dough Capacity kg	Bowl Volume L	Spiral Speed 1/2^A rpm	Bowl Speed rpm	Spiral Motor kW	Bowl Motor kW	Volt	Dimensions (A×B×C×D mm)	Weight kg
M60 Plus	–	60	100	95 ÷ 240	12 ÷ 25	3	0.55	400/50–60/3	1040×1200×620×730	370
M80 Plus	–	80	130	95 ÷ 240	12 ÷ 25	5.5	0.75	400/50–60/3	1190×1430×725×814	510
M100 Plus	–	100	160	95 ÷ 240	12 ÷ 25	5.5	0.75	400/50–60/3	1190×1430×725×814	520
M130 Plus	–	130	200	95 ÷ 240	12 ÷ 25	5.5	0.75	400/50–60/3	1335×1430×825×877	580
M160 Plus	–	160	250	95 ÷ 240	12 ÷ 25	7.5	1.1	400/50–60/3	1450×1522×925×882	790
M200 Plus	–	200	290	95 ÷ 240	12 ÷ 25	11	1.1	400/50–60/3	1490×1522×925×922	830
M250 Plus	–	250	390	95 ÷ 240	12 ÷ 25	11	1.1	400/50–60/3	1580×1522×1029×924	870
